SLITTING machine
As the slitting Machine Manufacturer,we have more than 20 years experience.Our slitting machines are designed for a wide range of applications offering the high quality and output.Let us offer you machine solutions for each market.
Application
Slitting Machine Structure
1.Horizontal
Unwinding Part:
1. Motor tension control / magnetic powder tension control.
2. Unwind shaft: shaftless feeding/gas expansion shaft feeding.
3. Hydraulic lifting/cylinder lifting.
4. Deflection correction system.
Slitting Part:

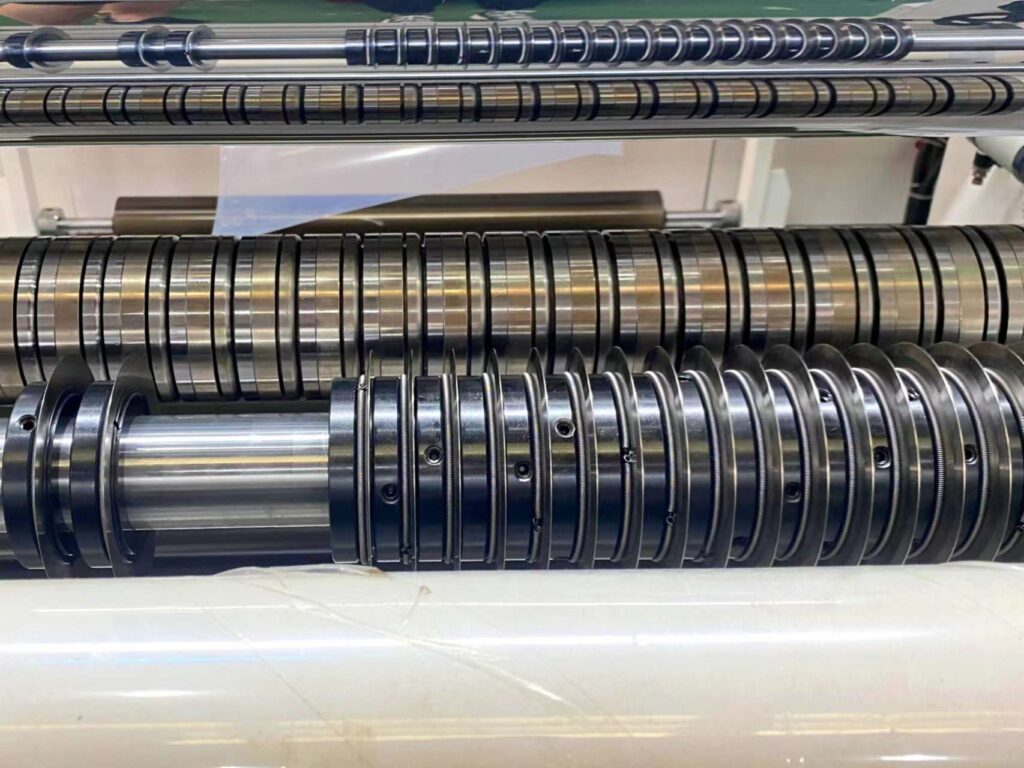

1.Tool: round knife / straight knife.
2.By pneumatic fixation of the blade shaft.
Rewinding Part :
1. Take-up shaft: air expansion shaft/slip differential shaft.
2.By pneumatic fixation of the blade shaft.
3.One-touch inflation of the air shaft.
4.Pneumatic hold-down rollers.
Electrical cabinet
1.PLC control system.
2.Servo motor/stepping motor.
3.Electrical appliances: MADE IN CHINA.
4.Precision pressure regulation.
5.Synchronous belt transmission:Noise reduction；Accurate torque transmission.
2.Vertical
Unwinding Part:
1. Motor tension control / magnetic powder tension control.
2. Unwind shaft: shaftless feeding/gas expansion shaft feeding.
3. Hydraulic lifting/cylinder lifting.
4. Deflection correction system.
Slitting Part:
1. Tool: round knife / straight knife.
2.Infrared positioning paper tube position.
Rewinding Part :
1.Winding shaft: air expansion shaft/slip shaft.
2. Winding method: rotary unloading/discharge type unloading.
Electrical cabinet
1.PLC control system.
2.Servo motor/stepping motor.
3.Electrical appliances: MADE IN CHINA.
3.Center Surface Winding
Unwinding Part:
1. Motor tension control / magnetic powder tension control.
2. Unwind shaft: shaftless feeding/gas expansion shaft feeding.
3. Hydraulic lifting/cylinder lifting.
4. Deflection correction system.
Rewinding Part :
1. Take-up shaft: air expansion shaft/slip differential shaft.
2.By pneumatic fixation of the blade shaft.
Electrical cabinet
1.PLC control system.
2.Servo motor/stepping motor.
3.Electrical appliances: MADE IN CHINA.
Building Your Line And Boost Your Business
We can customize the slitting machine line to suit your requirements.
Customizable parts include, but are not limited to the following sections：
1: What is the material?
2: What is Material thickness range and the Max. material width?
3: What is the maximum diameter and maximum weight of the raw material?
4: What is the inner diameter of the rewound paper tube?
5: What is the maximum diameter of the material after rewinding?
6: What is the width range of the material after slitting?
7: What is the speed requirements?
Center roll slitting machine
Surface Rolling Slitting Machine
- Speed：200m/min
- Winding Diameter：600mm
- Unwinder Diameter：1000mm
High Speed Surface Rolling Slitting Machine
- Speed：350m/min
- Winding Diameter：650mm
- Unwinder Diameter：1200mm
Rewinding Slitting Machine
High Speed Gantry Rewinding Slitting Machine
- Speed：500m/min
- Winding Diameter：1200mm
- Unwinder Diameter：1200mm
High Speed Rewinding Slitting Machine
- Speed：300m/min
- Winding Diameter：200mm
- Unwinder Diameter：1000mm
Horizontal Slitting Machine
High Speed Horizontal slitting machine
- Speed：200m/min
- Winding Diameter：600mm
- Unwinder Diameter：1000mm
High Speed Horizontal slitting machine
- Speed：450m/min
- Winding Diameter：1000mm
- Unwinder Diameter：1200mm
Vertical Slitting Machine
High Speed Vertical slitting machine
- Speed：200m/min
- Winding Diameter：450mm
- Unwinder Diameter：800mm
Customized Cases
High Speed Slitting Machine

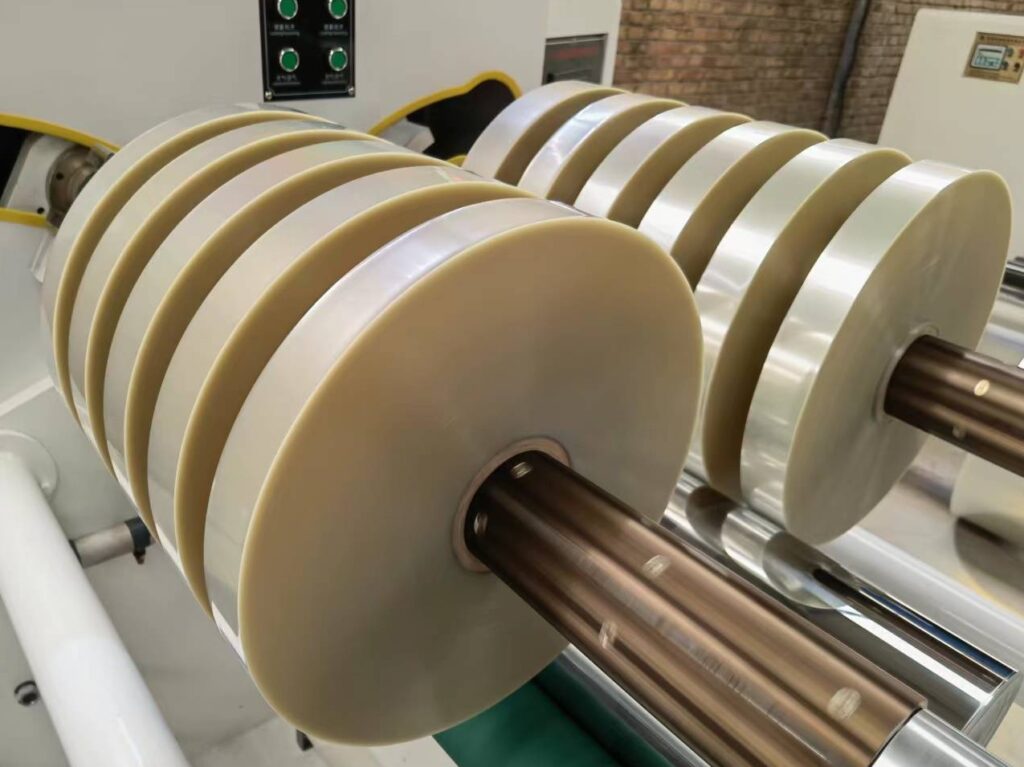

Bopp Slitting Machine

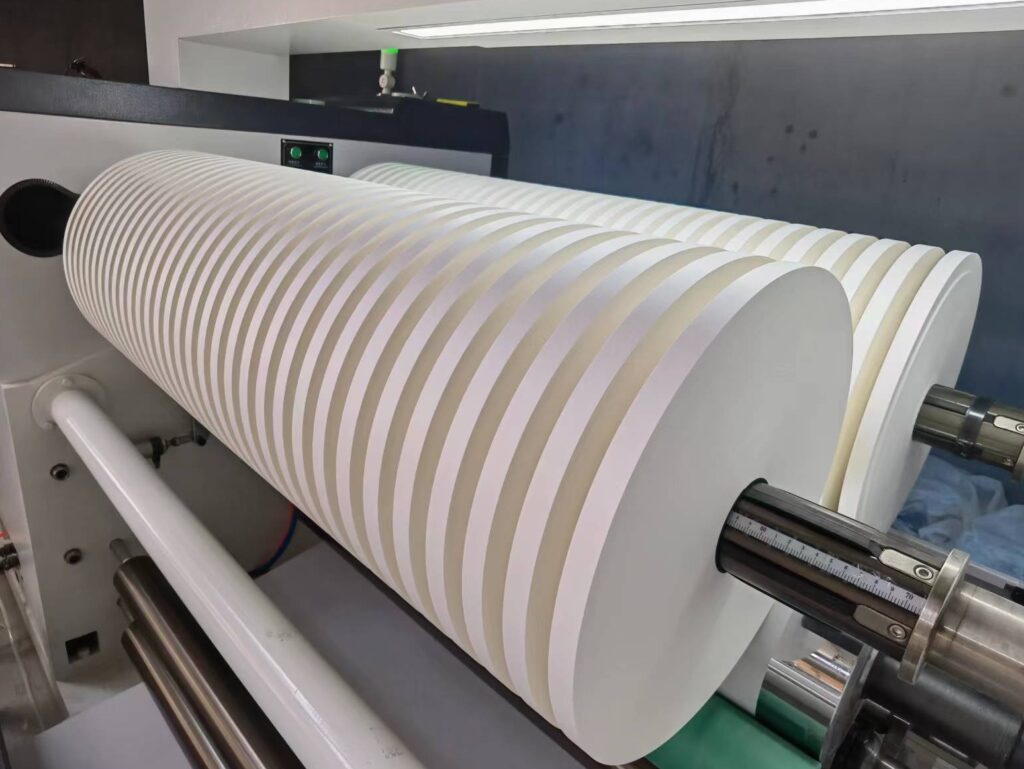

Paper Slitting Machine
Cellophane Slitting Machine
Notes On The Use Of The Machine
- Check whether the knife frame and guide roller are clean (before starting the machine);
- Check whether the air tube pneumatic components are leaking and whether the air pressure is normal (in operation);
- Check whether the fixing screws of the deflection sensor；EPC guide pillar； the fixing screw on the slider is loose (in operation);
- Check whether there is abnormal noise in the main motor, reducer and EPC (in operation);
- Check whether the upper and lower cutting knives are sharp and the product has no burrs;
- Check whether the electrical switches, buttons and indicators on the electric control box are normal in appearance and function (in operation).
