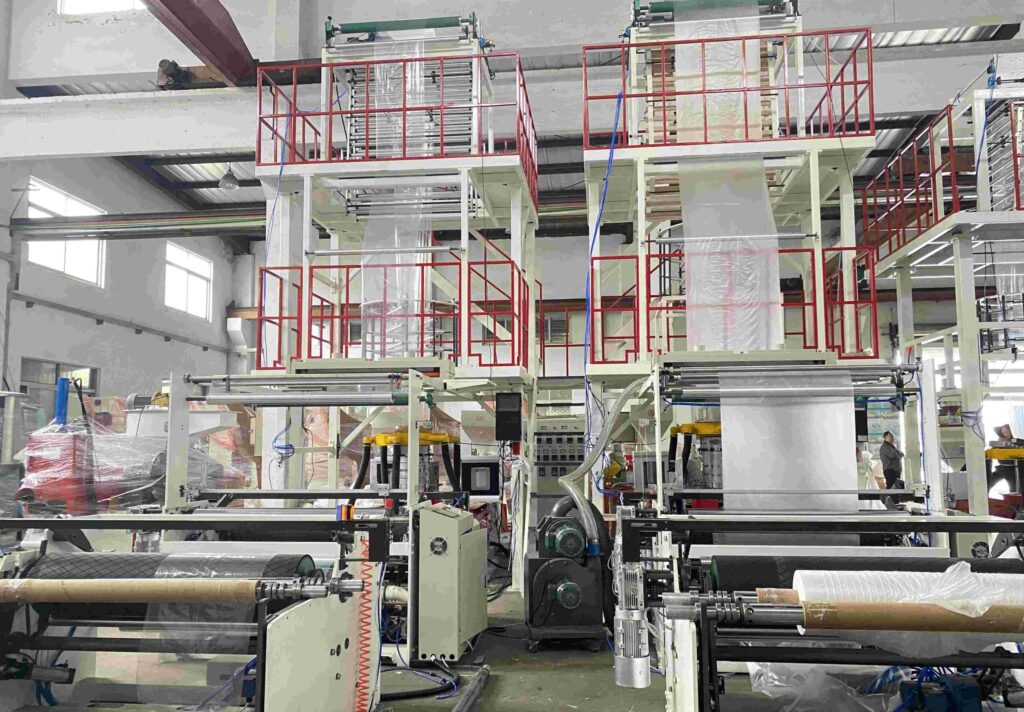

Film blowing machine (Film Extruder)
WILSON MACHINERY is one of the well-known film blowing machine manufacturers in China.Our professional technical team has more than 20 years of experience to design and customize the machines to meet every customer’s requirement.
Film Blowing Machine Structure
1.PE Film Blowing Machine
Traction Part:
- Type: Fixed type/Lifting type
- Traction embossing roller pneumatic clamping device
- Embossing roller
Herringbone Plate:
- Type: Wood Type/Resin Type/Alunimum
Stable Bubble:
- Type: Wood Type/Resin Type/Alunimum
Extruder Part:
- Screw: 38CrMoAL;Nitriding treatment.
Type: Normal Screw/Alloy Screw/Special screw for biodegradable material - Barrel Heating Type:
Stainless steel mica heating/Ceramic heating/Cast aluminum heating - Barrel Cooling Type: Blower Cooling/Water Cooling
- Rigid Gear Box: With oil pump circulation system
- Variable frequency motors
Screen Changer :
- Type:
Normal Screen Changer /Manual Quick Screen Changer /Hydraulic Quick Screen Changer - Screen Changer Heating Type:
Stainless steel mica heating/Ceramic heating/Cast aluminum heating
Die Head:
- Structure:
Single layer spiral die head/double layer spiral die head/Stacking die head - Material:
40Cr Die Steel
Air Ring:
- Type:
Single Air Outlet/Double Air Outlet /Rotary Air Ring/automatic air ring - Material:
Aluminum
Winding Part:
- Type: Friction winding/Center Winding
- Structure:
Single Winding/Double Winding - Function
Manual winding/Semi-automatic winding/Fully automatic winding
Electrical Control Cabinet:
- Host temperature control：YATAI MADE IN CHINA
- Contactors，Buttons，Circuit Breaker：CHINT MADE IN CHINA
- Frequency converter：Euro Made In China
- The brand can be choosen according your requirement.
2.PP Film Blowing Machine
Air Blower
Auto Loader
Extruder Part
Screen Changer
Die head
Rotating Die Head
Heating
Gear Box
Drying Part
Water Cooling
Winding Part
complete machine
3.POF Film Blowing Machine
Extruder Part
Screw and Barrel
The first blowing
The second blowing
Water Cooling
Winder
Die Head and water cooling
Die Head
Tractiong Part
Optional Accessories
Air Compressor
Automatic Feeding Machine
Corona Treatment
Double Air Outlet Air Ring
Edge Corrector
Edge recycling machine
Manual Quick Screen Changer
Metric weight instrument
Rotary Die Head
Application
Building Your Line And Boost Your Business
We can customize the plastic film machine line to suit your requirements.
Customizable parts include, but are not limited to the following sections：
- Film Materials Type
- Final Packaging Product Type
- Sheet Or Tube
- Max.Thickness of Single Sheet
- Max.Width Of Sheet or Tube
- Capacity/Output
Multi-Layer Film Blowing Machine
Three Layers Co-extrusion Traction Rotary Film Blowing Machine
- Film Width：800~2000mm
- Film Thickness：0.02~0.15mm
- Max.Extrusion Output：140~280kg/h
Three layers Co-extrusion Rotary Die Film Blowing Machine
- Max.Film Width：1000~1500mm
- Film Thickness：0.02~0.1mm
- Max.Extrusion Output：90~150kg/h
Double Layers Co-extrusion Rotary Die Film Blowing Machine
- Max.Film Width：800~1500mm
- Film Thickness：0.02~0.1mm
- Max.Extrusion Output：70~120kg/h
ABA Three Layers Co-Extrusion Film Blowing Machine
- Film Width：800~1500mm
- Film Thickness：0.01~0.1mm
- Max.Extrusion Output：75~120kg/h
Mono Layer Film Blowing Machine
Rotary Die Head Film Blowing Machine
- Film Width：600~1000mm
- Film Thickness：0.01~0.1mm
- Max.Extrusion Output：40~60kg/h
HDPE/LDPE Film Blowing Machine
- Max.Film Width：600~1200mm
- Film Thickness：0.008~0.1mm
- Max.Extrusion Output：40~70kg/h
Heat Shrink PE Film Blown Machine
- Max.Film Width：600~1200mm
- Film Thickness：0.01~0.1mm
- Max.Extrusion Output：40~70kg/h
PP Film Blowing Machine
- Film Width：600~800mm
- Film Thickness：0.015-0.08mm
- Max.Extrusion Output：38~46kg/h
High Speed Film Blowing Machine
- Film Width：300~1200mm
- Film Thickness：0.008~0.1mm
- Max.Extrusion Output：60~140kg/h
Double-Colors Strip Film Blowing Machine
- Max.Film Width：600~800mm
- Film Thickness：0.008~0.08mm
- Max.Extrusion Output：40~55kg/h
Double Die-Head Film Blowing Machine
- Max.Film Width：2✖（500~600）mm
- Film Thickness：0.01~0.1mm
- Max.Extrusion Output：45~60kg/h
Mini Film Blowing Machine
- Film Width：400~600mm
- Film Thickness：0.01~0.1mm
- Max.Extrusion Output：30~40kg/h
Quality Assurance
Excellent Accessories
Screw processing
Die head processing
Reliable Production Process
Production workshop
Production workshop
Production workshop
Production workshop
Production workshop
How To Maintain The Film Blowing Machine
- The oil in the gearbox oil tank needs to be replaced regularly.
- Regularly check whether the screws of the electrical cabinet are loose and whether the wires are leaking. Current heating causes the screws to loosen automatically. Loose screws will increase the current, the wire is easy to be burned. It is recommended that the new machine run about 15 days to tighten the wire.
- The whole machine needs to be cleaned regularly, dirty may damage the electrical appliances.
